21HP Kawasaki w/ 48 Mower Deck
21HP Kawasaki w/ 48 Mower Deck

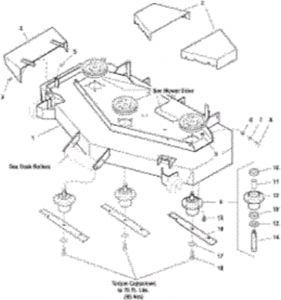

48 & 52 Mower Decks – Housing, Covers, Spindles & Blades
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5647453 | NLA (Includes Safety Decals) | ||
| 1 | 5647467 | Deck Shell W/Decals, 52in., IS1000Z (Includes Safety Decals) | ||
| 2 | 5047129B | Guard Detail | ||
| 3 | 5046445B | Weld, Discharge Chute | ||
| 4 | 5025011X8 | Bolt, 5/16-18 X 1 GD5 YZ | ||
| 5 | 5025057 | Nut, 5/16-18 Hex Nylon Lock | ||
| 6 | 5022308 | Body Clip, 5/16-18 X 1/2 Deep | ||
| 7 | 5025155 | Washer, 5/16 SAE | ||
| 8 | 5025011X6 | Bolt, 5/16-18 X 3/4 GD5 | ||
| 9 | 5061095 | Assembly, Spindle, Low Profile (Includes Ref No. 10 - 14) | ||
| 10 | 5046363X5 | Bearing | ||
| 11 | 5046363X4 | Spacer, Bearing | ||
| 12 | 5046363X1 | Housing, Spindle | ||
| 13 | 5046363X3 | Shield, Trash | ||
| 14 | 5046363X2 | Shaft, Spindle | ||
| 15 | 5023156 | Bolt, 5/16-18 X 1 1/4 Flange | ||
| 16 | 5020843 | Blade, 16.25 | ||
| 16 | 5021227 | Blade, 18 | ||
| 17 | 5025159 | Washer, 5/8 USS | ||
| 18 | 5025320X14 | Bolt, 5/8-11 X 1-3/4in. GD8 |

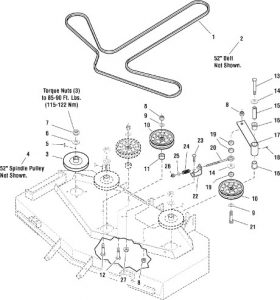

48 & 52 Mower Decks – Pulleys, Belt & Idler Arm
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5022667 | Belt,# 7-6399 | ||
| 1 | 5022148 | Belt, #7-4702 | ||
| 2 | 5022622 | Pulley, Spindle, 25mm Bore (48" Deck, S/N: 855 & Below) | ||
| 2 | 5023175 | Pulley, 5.72., 48 Deck (48" Deck, S/N: 856 & Above) | ||
| 2 | 5022721 | Pulley, Spindle, 1in. Bore (52" Deck S/N: 1185 & Below) | ||
| 2 | 5023178 | Pulley, 6.122 OD., 52in. Deck (52" Deck, S/N: 1186 & Above) | ||
| 3 | 5050407X10 | Key, 1/4in. SQ. X 5/8 | ||
| 4 | 5025318 | Washer, Belleville | ||
| 5 | 5025319 | Nut, 5/8-18 Hex Nylon Lock | ||
| 6 | 5025056 | Nut, 1/2-13 Hex Nylon Lock | ||
| 7 | 5025158 | Washer, 1/2 SAE | ||
| 8 | 5600184 | Kit, Pulley & Shield (Includes Part Nos 5021976 & 5101103) | ||
| 9 | 5047142 | Spacer, .52 X 1.25 X .70 | ||
| 10 | 5025017X24 | Bolt, 1/2-13 X 3 GD5 | ||
| 11 | 5025017X36 | Bolt, 1/2-13 X 4-1/2 GD5 | ||
| 12 | 5025150 | Washer, 1/2 USS | ||
| 13 | 5045022 | Spacer, .52 X 1.00 X 3.50 | ||
| 14 | 5021541 | Bushing, Flange | ||
| 15 | 5045106B | Assembly, Idler Arm | ||
| 16 | 5020095 | Grease Fitting, 1/4-28 Straight | ||
| 17 | 5045023 | Spacer, .52 X 1.00 X .44 | ||
| 18 | 5021811 | Eye Bolt, 3/8-16 X 8in., 1in. Eye | ||
| 19 | 5025017X28 | Bolt, 1/2-13 X 3-1/2 GD5 | ||
| 20 | 5045200B | Weld, Anchor Eyebolt | ||
| 21 | 5025013X8 | Bolt, 3/8-16 X 1 GD5 YZ | ||
| 22 | 5022788 | Spring, Compression 2in. Medium | ||
| 23 | 5025156 | Washer, 3/8 SAE | ||
| 24 | 5025096 | Nut, 3/8-16 Hex Nylon Lock | ||
| 25 | 5025128 | Nut, 3/8-16 Hex Serrated Flange |

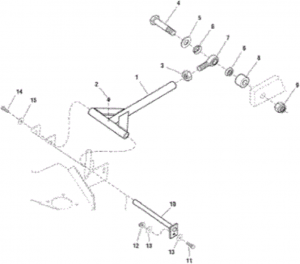

48 & 52 Mower Decks – Rear Mount Bars
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5045009 | Assembly, Pusher Bar | ||
| 2 | 5020095 | Grease Fitting, 1/4-28 Straight | ||
| 3 | 5025093 | Nut, 3/4-16 Hex Jam | ||
| 4 | 5025265X32 | Bolt, 3/4-16 X 4in. YZ GD5 | ||
| 5 | 5025160 | Washer, 3/4 SAE | ||
| 6 | 5022111 | Seal, 3/4in. Rod End | ||
| 7 | 5022039 | Ball Joint, 3/4-16, Male | ||
| 8 | 5046093 | Spacer, .75 X 1.50 X 1.00 | ||
| 9 | 5025284 | Nut, 3/4-16 Hex Nylon Lock | ||
| 10 | 5045037B | Weld, Deck Mount Shaft | ||
| 11 | 5025013X10 | Bolt, 3/8-16 X 1-1/4 GD5 | ||
| 12 | 5025096 | Nut, 3/8-16 Hex Nylon Lock | ||
| 13 | 5025156 | Washer, 3/8 SAE | ||
| 14 | 5025013X8 | Bolt, 3/8-16 X 1 GD5 YZ | ||
| 15 | 5100548 | Washer, .390 X 1.50 X .109, YZ |

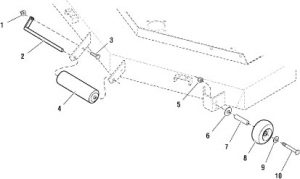

48 & 52 Mower Decks – Rollers
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5025128 | Nut, 3/8-16 Hex Serrated Flange | ||
| 2 | 5041655B | Weld, Bracket, Roller Pin | ||
| 3 | 5025013X8 | Bolt, 3/8-16 X 1 GD5 YZ | ||
| 4 | 5020785 | Roller, Deck | ||
| 5 | 5025096 | Nut, 3/8-16 Hex Nylon Lock | ||
| 6 | 5025305 | Washer, .41 X 1.75 X .14 | ||
| 7 | 5045992 | Spacer, .39 X .63 X 2.56 | ||
| 8 | 1716353 | Gauge Wheel-2.70 | ||
| 9 | 5025165 | Washer, 3/8 Fender | ||
| 10 | 5025013X28 | Bolt, 3/8-16 X 3-1/2 GD5 YZ | ||
| 11 | 5100548 | Washer, .390 X 1.50 X .109, YZ |

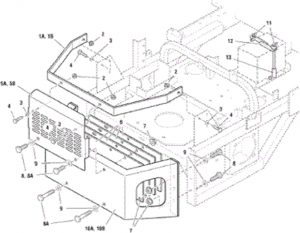

Bumper Group – Rear
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 0 | 5047114B | Bar, Bumper (48" Model, S/N: 1905 & Below / 52" Model, S/N: 1400 & Below) | ||
| 0 | 5049142B | Bar, Bumper (48" Model, S/N: 1906 & Above / 52" Model, S/N: 1401 & Above) | ||
| 0 | 5047071B | Vent Plate, Bumper (48" Model, S/N: 1905 & Below / 52" Model, S/N: 1400 & Below) | ||
| 0 | 5049147B | Plate, Vented Bumper (48" Model, S/N: 1906 & Above / 52" Model, S/N: 1401 & Above) | ||
| 0 | 5025013X16 | Bolt, 3/8-16 X 2 GD5 YZ (52" Model Only) | ||
| 0 | 5047115B | Bumper Weldment (48" Model, S/N: 1905 & Below / 52" Model, S/N: 1400 & Below) | ||
| 0 | 5047851B | Weld, Rear Bumper (48" Model, S/N: 1906 & Above / 52" Model, S/N: 1401 & Above) | ||
| 2 | 5025139 | Nut, 5/16-18 Hex Serrated Flange (Large) | ||
| 3 | 5025155 | Washer, 5/16 SAE | ||
| 4 | 5025011X8 | Bolt, 5/16-18 X 1 GD5 YZ | ||
| 6 | 5047485B | Counterweight (52" Model Only) | ||
| 7 | 5025128 | Nut, 3/8-16 Hex Serrated Flange (48" Model) | ||
| 7 | 5025128 | Nut, 3/8-16 Hex Serrated Flange (52" Model) | ||
| 8 | 5025013X8 | Bolt, 3/8-16 X 1 GD5 YZ (48" Model) | ||
| 8 | 5025013X8 | Bolt, 3/8-16 X 1 GD5 YZ (52" Model) | ||
| 9 | 5025156 | Washer, 3/8 SAE (48" Model) | ||
| 9 | 5025156 | Washer, 3/8 SAE (52" Model) | ||
| 11 | 5022596 | Battery Hold Down Bolt 8 | ||
| 12 | 5022595 | Battery Hold Down, Adjustable | ||
| 13 | 5050831X3 | Hose, 1/4in. Fuel, 3.00in. |

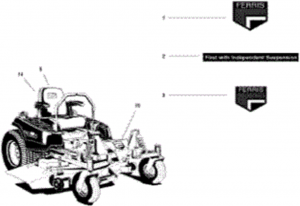

Decal Group – Brand & Model
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5022227 | Decal, Ferris Logo, 6-3/8in. (Located On Back Of Seat) | ||
| 2 | 5022239 | Decal, First W/ Independent (Located On Back Of Seat) | ||
| 3 | 5022556 | Decal, Ferris Logo, 5 |

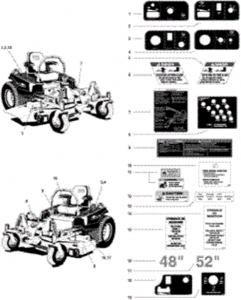

Decal Group – Safety & Operation
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5047141 | Decal,Control Panel RH 1000Z (48" Model, S/N: 410 & Below / 52" Model, S/N: 555 & Below) | ||
| 2 | 5047861 | Decal, Control Panel-RH (48" Model, S/N: 411 - 1905 / 52" Model, S/N: 556 - 1400) | ||
| 3 | 5046469 | Decal, Control Panel-LH (48" Model, S/N: 410 & Below / 52" Model, S/N: 555 & Below) | ||
| 4 | 5047863 | Decal, Control Panel-LH(1000Z) (48" Model, S/N: 411 - 1905 / 52" Model, S/N: 556 - 1400) | ||
| 5 | 1704277 | Decal-Danger Do Not Operate W/O Deflectr | ||
| 6 | 1704276 | Decal-Danger Do Not Put Hand/Feet In MWR | ||
| 7 | 5045559 | Decal-Operation | ||
| 8 | 5047138 | Decal, Lift Plate | ||
| 9 | 5047171 | Decal, Warning/Danger | ||
| 10 | 5045562 | Decal, Hydraulic Release Valve | ||
| 11 | 5020337 | Decal, Warning (On Top Of Mower Deck) | ||
| 12 | 5046481 | Decal, Caution Rotating Fan | ||
| 13 | 5046503 | Decal, Fuse Location | ||
| 14 | 5047175 | Decal, Oil Reservoir (Steel Tank) | ||
| 15 | 5048454 | Decal, Oil Resevoir (Plastic Tank) | ||
| 16 | 5022811 | Decal, 48 | ||
| 17 | 5022812 | Decal, 52 | ||
| 18 | 5049199 | Decal, Control Panel | ||
| 19 | 5049148 | Decal, Fuel Selector |

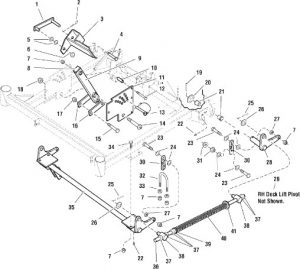

Deck Lift Group
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5044999B | Weld, Foot Pedal Lock | ||
| 2 | 5025210 | Pin, Hair, .0915 X 1-7/8 | ||
| 3 | 5045058B | Weld, Deck Lift Pedal | ||
| 3 | 5101008 | Safety Walk, 4.50 X 3.50 (Not Shown) | ||
| 4 | 5022044 | Pin, Clevis, 1/2 X 2-1/2 YZP | ||
| 5 | 5025158 | Washer, 1/2 SAE | ||
| 6 | 5023241 | Collar, 1/2in. Single Split,PLTD | ||
| 7 | 5025096 | Nut, 3/8-16 Hex Nylon Lock | ||
| 8 | 5022097 | Cap, 1 X 1-1/2 X 11Ga, Plastic | ||
| 9 | 5044987B | Weld, Deck Lift Arm | ||
| 10 | 5044992 | Spacer, .38 X .50 X 1.56 | ||
| 11 | 5047043B | Plate, Deck Lift Pivot | ||
| 12 | 5025013X22 | Bolt, 3/8-16 X 2-3/4in. GD5 YZ | ||
| 13 | 5023082 | Hitch Pin Assembly., 1/2 X 3.50 | ||
| 14 | 5044993 | Bolt, Deck Lift Pivot | ||
| 15 | 5025018X24 | Bolt, 1/2-20 X 3in. GD5 YZ | ||
| 16 | 5047513B | Link, Deck Lift-Long | ||
| 17 | 5025098 | Nut, 1/2-20 Hex Nylon Lock | ||
| 18 | 5025282 | Nut, 5/8-11 Hex Jam Nylon Lock | ||
| 19 | 5025516 | Pin, Roll, 3/16in. X 1-1/2in. PLN. | ||
| 20 | 5021253 | Shim, 1.0 X 1.5 X 0.032 | ||
| 21 | 5047446 | Pivot, Spring Rod | ||
| 22 | 5025040 | Nut, 5/8-11 Hex | ||
| 23 | 5045449B | Pivot, Deck Lift Weld.-Left | ||
| 23 | 5045450B | Pivot, Deck Lift Weld.-Right (Not Shown) | ||
| 24 | 5020095 | Grease Fitting, 1/4-28 Straight | ||
| 25 | 5045446 | Rod, Deck Lift Spring | ||
| 26 | 5025013X10 | Bolt, 3/8-16 X 1-1/4 GD5 | ||
| 27 | 5045447 | Pivot, Spring Rod | ||
| 28 | 5025159 | Washer, 5/8 USS | ||
| 29 | 5022668 | Spring, Deck Lift, 14 | ||
| 30 | 5041477 | Spacer, .63 X 1.06 X .23 | ||
| 31 | 5047198B | Deck Lift Offset-LH | ||
| 31 | 5047197B | Deck Lift Offset-RH (Not Shown) | ||
| 32 | 5022366 | Pin, 3/16in. X 1-1/4in. Spring | ||
| 33 | 5025281 | Washer, 5/8in. SAE | ||
| 34 | 5047500B | Deck Lift Rod Assembly-LH | ||
| 34 | 5047498B | Deck Lift Rod Assembly-RH (Not Shown) | ||
| 35 | 5025013X14 | Bolt, 3/8-16 X 1-3/4 GD5 | ||
| 36 | 5025156 | Washer, 3/8 SAE | ||
| 37 | 5050878X3 | Chain, 5/16 GD30, 3 Links | ||
| 38 | 5025128 | Nut, 3/8-16 Hex Serrated Flange | ||
| 39 | 5025084 | Nut, 3/8-16 Hex Jam | ||
| 40 | 5047438B | ISF Pivot, Deck Lift Weld.-LH | ||
| 40 | 5047437B | ISF Pivot, Deck Lift Weld.-RH (Not Shown) | ||
| 41 | 5025325 | U-Bolt 3/8-16 X 3.312 | ||
| 42 | 5025034 | Nut, 3/8-16 Hex | ||
| 43 | 5047441B | ISF Shaft, Deck Lift Weld. |

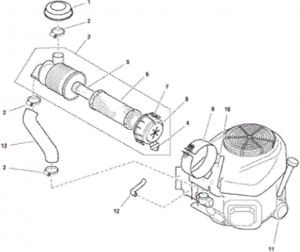

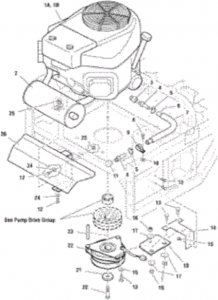

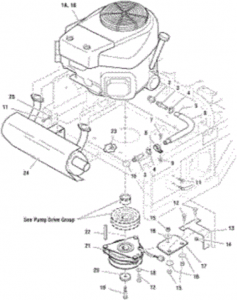

Engine & PTO Group – Kawasaki (Early Models)
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 0 | Engine, 21HP Kawasaki (Model Fh641V) | |||
| 0 | Engine, 23HP Kawasaki (Model Fh680V) | |||
| 0 | 5021178X3 | Fuel Filter | ||
| 0 | 5021334X1 | Oil Filter, Kawasaki | ||
| 0 | Foam Pre-Cleaner (11013-7009) | |||
| 0 | Air Filter (11013-7010) | |||
| 2 | 5022647 | R/B - 5022953 | ||
| 3 | 5022234 | Adapter, Oil Drain | ||
| 4 | 5021372 | Fitting, 3/8NPT-1/2in. Hose, STR | ||
| 5 | 5021392 | Clamp, #6 Hose, Stainless | ||
| 6 | 5050857X9 | Hose, 1/2in. Push-On, 9.00in. | ||
| 7 | 5050862X7 | Wire Loom, 3/4in. ID, 7in. Long | ||
| 8 | 5025010X6 | Bolt, 1/4-20 X 3/4 GD5 YZ | ||
| 9 | 5021500 | Clamp, Vinyl Insulated | ||
| 10 | 5025126 | Nut, 1/4-20 Hex Serr. Flange | ||
| 11 | 5021466 | Cap, 3/8in. NPT | ||
| 12 | 5025011X6 | Bolt, 5/16-18 X 3/4 GD5 | ||
| 13 | 5025013X8 | Bolt, 3/8-16 X 1 GD5 YZ | ||
| 14 | 5047134B | Anchor, Clutch Mount | ||
| 15 | 5025057 | Nut, 5/16-18 Hex Nylon Lock | ||
| 16 | 5025096 | Nut, 3/8-16 Hex Nylon Lock | ||
| 17 | 5025165 | Washer, 3/8 Fender | ||
| 18 | 5043636 | Clutch Anchor Pad | ||
| 19 | 5025156 | Washer, 3/8 SAE | ||
| 20 | 5044853 | Bolt, Crankshaft, 7/16in. X 2 | ||
| 21 | 5045475 | Spacer, .45 X 1.88 X .38 | ||
| 22 | 5023432 | Clutch,#526115,Electric Gt2.5-Fe01S | ||
| 23 | 5050407X28 | Key, 1/4in. SQ. X 3-1/2in. Long | ||
| 24 | 5025155 | Washer, 5/16 SAE | ||
| 25 | 5025127 | Nut, 5/16-18 Hex Serrated Flange (Small) | ||
| 26 | 5046487B | Support, Muffler Weldment |

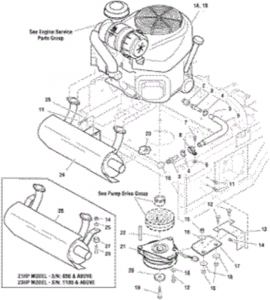

Engine & PTO Group – Kawasaki (Later Models)
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 0 | Engine, 21HP Kawasaki (Model FH641V) | |||
| 0 | Engine, 23HP Kawasaki (Model FH680V) | |||
| 0 | 5021178X3 | Fuel Filter | ||
| 0 | 5021334X1 | Oil Filter, Kawasaki | ||
| 2 | 5022234 | Adapter, Oil Drain | ||
| 3 | 5021372 | Fitting, 3/8NPT-1/2in. Hose, STR | ||
| 4 | 5021392 | Clamp, #6 Hose, Stainless | ||
| 5 | 5050857X9 | Hose, 1/2in. Push-On, 9.00in. | ||
| 6 | 5050862X7 | Wire Loom, 3/4in. ID, 7in. Long | ||
| 7 | 5025010X6 | Bolt, 1/4-20 X 3/4 GD5 YZ | ||
| 8 | 5021500 | Clamp, Vinyl Insulated | ||
| 9 | 5025126 | Nut, 1/4-20 Hex Serr. Flange | ||
| 10 | 5021466 | Cap, 3/8in. NPT | ||
| 11 | 5025011X6 | Bolt, 5/16-18 X 3/4 GD5 | ||
| 12 | 5025013X8 | Bolt, 3/8-16 X 1 GD5 YZ | ||
| 13 | 5047134B | Anchor, Clutch Mount | ||
| 14 | 5025057 | Nut, 5/16-18 Hex Nylon Lock | ||
| 15 | 5025096 | Nut, 3/8-16 Hex Nylon Lock | ||
| 16 | 5025165 | Washer, 3/8 Fender | ||
| 17 | 5043636 | Clutch Anchor Pad | ||
| 18 | 5025156 | Washer, 3/8 SAE | ||
| 19 | 5044853 | Bolt, Crankshaft, 7/16in. X 2 | ||
| 20 | 5045475 | Spacer, .45 X 1.88 X .38 | ||
| 21 | 5023432 | Clutch,#526115,Electric Gt2.5-Fe01S | ||
| 22 | 5050407X28 | Key, 1/4in. SQ. X 3-1/2in. Long | ||
| 23 | 5025127 | Nut, 5/16-18 Hex Serrated Flange (Small) | ||
| 24 | 5022953 | R/B - 5023162 - Muffler **Serial Break* | ||
| 25 | 5025155 | Washer, 5/16 SAE | ||
| 26 | 5100975 | Muffler, 21HP-25HP Kawasaki Engines | ||
| 27 | 5043815 | Spacer, .39 X 1.00 X .75 | ||
| 28 | 5025011X12 | Bolt, 5/16-18 X 1-1/2in. GD5 YZ |
Engine & PTO Group – Kawasaki (Middle Models)
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 0 | Engine, 21HP Kawasaki (Model FH641V) | |||
| 0 | Engine, 23HP Kawasaki (Model FH680V) | |||
| 0 | 5021178X3 | Fuel Filter | ||
| 0 | 5021334X1 | Oil Filter, Kawasaki | ||
| 0 | Foam Pre-Cleaner (11013-7009) | |||
| 0 | Air Filter (11013-7010) | |||
| 2 | 5022234 | Adapter, Oil Drain | ||
| 3 | 5021372 | Fitting, 3/8NPT-1/2in. Hose, STR | ||
| 4 | 5021392 | Clamp, #6 Hose, Stainless | ||
| 5 | 5050857X9 | Hose, 1/2in. Push-On, 9.00in. | ||
| 6 | 5050862X7 | Wire Loom, 3/4in. ID, 7in. Long | ||
| 7 | 5025010X6 | Bolt, 1/4-20 X 3/4 GD5 YZ | ||
| 8 | 5021500 | Clamp, Vinyl Insulated | ||
| 9 | 5025126 | Nut, 1/4-20 Hex Serr. Flange | ||
| 10 | 5021466 | Cap, 3/8in. NPT | ||
| 11 | 5025011X6 | Bolt, 5/16-18 X 3/4 GD5 | ||
| 12 | 5025013X8 | Bolt, 3/8-16 X 1 GD5 YZ | ||
| 13 | 5047134B | Anchor, Clutch Mount | ||
| 14 | 5025057 | Nut, 5/16-18 Hex Nylon Lock | ||
| 15 | 5025096 | Nut, 3/8-16 Hex Nylon Lock | ||
| 16 | 5025165 | Washer, 3/8 Fender | ||
| 17 | 5043636 | Clutch Anchor Pad | ||
| 18 | 5025156 | Washer, 3/8 SAE | ||
| 19 | 5044853 | Bolt, Crankshaft, 7/16in. X 2 | ||
| 20 | 5045475 | Spacer, .45 X 1.88 X .38 | ||
| 21 | 5023432 | Clutch,#526115,Electric Gt2.5-Fe01S | ||
| 22 | 5050407X28 | Key, 1/4in. SQ. X 3-1/2in. Long | ||
| 23 | 5025127 | Nut, 5/16-18 Hex Serrated Flange (Small) | ||
| 24 | 5022953 | R/B - 5023162 - Muffler **Serial Break* | ||
| 25 | 5025155 | Washer, 5/16 SAE |
Engine Accessories Group
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5023143 | Cap, Rain | ||
| 2 | 5023146 | Clamp | ||
| 3 | 5023139 | Air Filter, Complete Assembly (Includes Ref No. 4 - 8) | ||
| 4 | 5023144 | Cap, Filter Case | ||
| 5 | 5023140 | Element, Air Filter, Secondary | ||
| 6 | 5023141 | Element, Air Filter, Primary | ||
| 7 | 5023147 | Clamp, Cap | ||
| 8 | 5023138 | Air Filter, Cap/End | ||
| 9 | 5023145 | Bracket, Complete | ||
| 10 | 5023142 | Bracket | ||
| 11 | 5021334X1 | Oil Filter, Kawasaki | ||
| 12 | 5023148 | Tube | ||
| 13 | 5023149 | Tube, Air Inlet |

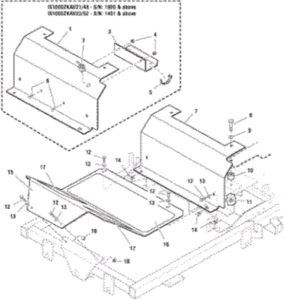

Floor Pan & Brake Cover Group
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 49240 | NLA | ||
| 2 | 5022030 | Valve, Fuel, On-Off-On Shutoff | ||
| 3 | 5049181B | Guide, Fuel Line | ||
| 4 | 5025095 | Nut, 1/4-20 Hex Nylon Lock | ||
| 5 | 5021029 | Cable Tie, 12in. | ||
| 6 | 5025144X6 | Bolt, 1/4-20 X 3/4in., Carriage | ||
| 7 | 5047069B | Panel, Brake Cover | ||
| 8 | 5025013X16 | Bolt, 3/8-16 X 2 GD5 YZ | ||
| 9 | 5025156 | Washer, 3/8 SAE | ||
| 10 | 5047125 | Spacer, .39 X 1.00 X .88 | ||
| 11 | 5025128 | Nut, 3/8-16 Hex Serrated Flange | ||
| 12 | 5025011X8 | Bolt, 5/16-18 X 1 GD5 YZ | ||
| 13 | 5025155 | Washer, 5/16 SAE | ||
| 14 | 5022308 | Body Clip, 5/16-18 X 1/2 Deep | ||
| 15 | 5047480B | Floor Pan, IS1000Z | ||
| 16 | 5047483 | Safety Walk, 19.50 X 9.75 | ||
| 17 | 5101005 | Safety Walk, 9.75 X 6.00 | ||
| 18 | 5025127 | Nut, 5/16-18 Hex Serrated Flange (Small) |

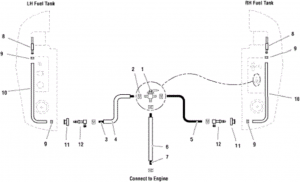

Fuel Supply Hose & Tank Replacement Parts Group (Early Models)
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5022030 | Valve, Fuel, On-Off-On Shutoff | ||
| 2 | 5020835 | Clamp, Hose, External, 1/2 - Red | ||
| 3 | 5050831X45 | Hose, 1/4in. Fuel, 45.00in. | ||
| 4 | 5050833X43 | Wire Loom, 1/2in. ID, 43in. Long | ||
| 5 | 5050831X6P5 | Hose, 1/4in. Fuel, 6.50in. | ||
| 6 | 5050833X40 | Wire Loom, 1/2in. ID, 40in. Long | ||
| 7 | 5050831X42 | Hose, 1/4in. Fuel, 42.00in. | ||
| 8 | See Ref # 10 | |||
| 10 | 5101217 | Assembly, Fuel Hose, 20in. |

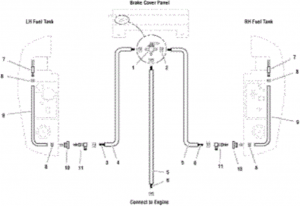

Fuel Supply Hose & Tank Replacement Parts Group (Later Models)
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5022030 | Valve, Fuel, On-Off-On Shutoff | ||
| 2 | 5020835 | Clamp, Hose, External, 1/2 - Red | ||
| 3 | 5050831X68 | Hose, 1/4in. Fuel, 68.00in. | ||
| 4 | 5050833X66 | Wire Loom, 1/2in. ID 66 | ||
| 5 | 5050833X58 | Wire Loom, 1/2in. ID 58 | ||
| 6 | 5050831X60 | Hose, 1/4in. Fuel, 60.00in. | ||
| 7 | See Ref # 10 | |||
| 9 | 5101217 | Assembly, Fuel Hose, 20in. |

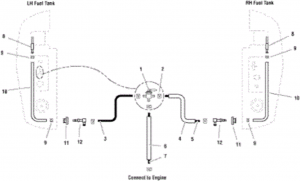

Fuel Supply Hose & Tank Replacement Parts Group (Middle Models)
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5022030 | Valve, Fuel, On-Off-On Shutoff | ||
| 2 | 5020835 | Clamp, Hose, External, 1/2 - Red | ||
| 3 | 5050831X7P5 | Hose, 1/4in. Fuel, 7.50in. | ||
| 4 | 5050833X34 | Wire Loom, 1/2in. ID, 34in. Long | ||
| 5 | 5050831X36 | Hose, 1/4in. Fuel, 36.00in. | ||
| 6 | 5050833X46 | Wire Loom, 1/2in. ID, 46 | ||
| 7 | 5050831X48 | Hose, 1/4in. Fuel, 48.00in. | ||
| 8 | See Ref # 10 | |||
| 10 | 5101217 | Assembly, Fuel Hose, 20in. |

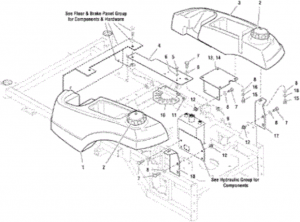

Fuel Tank & Mount Group (Early Models)
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5047179 | Fuel Tank, IS1000Z, Left Hand | ||
| 2 | 5101651 | Fuel Tank Cap | ||
| 3 | 5047178 | Fuel Tank, IS1000Z, Right Hand | ||
| 4 | 5047073B | Mount, Fan Shield | ||
| 5 | 5025010X6 | Bolt, 1/4-20 X 3/4 GD5 YZ | ||
| 6 | 5025154 | Washer, 1/4 SAE | ||
| 7 | 5025011X8 | Bolt, 5/16-18 X 1 GD5 YZ | ||
| 8 | 5025155 | Washer, 5/16 SAE | ||
| 9 | 5022308 | Body Clip, 5/16-18 X 1/2 Deep | ||
| 10 | 5046645B | Shield, Fan | ||
| 11 | 5022665 | Body Clip, 1/4-20 X 1/2in. Deep | ||
| 12 | 5025127 | Nut, 5/16-18 Hex Serrated Flange (Small) | ||
| 13 | 5047149B | Weld, Fuel Tank Mount - RH | ||
| 14 | 5047133B | Weld, Fuel Tank Mount - LH | ||
| 15 | 5025011X6 | Bolt, 5/16-18 X 3/4 GD5 | ||
| 16 | 5025170 | Washer, 5/16 Lock YZ | ||
| 17 | 5047167B | Bracket, Fuel Tank Support, RH | ||
| 18 | 5047166B | Bracket, Fuel Tank Support, LH |

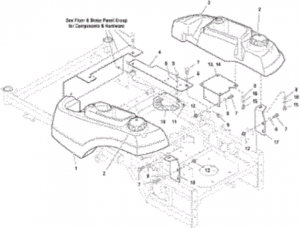

Fuel Tank & Mount Group (Later Models)
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5049149 | Tank, Fuel, IS1000Z, LH | ||
| 1 | 5046273 | Fill Tube, Gas Tank | ||
| 2 | 5101651 | Fuel Tank Cap | ||
| 3 | 5049150 | Tank, Fuel, IS1000Z, RH | ||
| 4 | 5047073B | Mount, Fan Shield | ||
| 5 | 5025010X6 | Bolt, 1/4-20 X 3/4 GD5 YZ | ||
| 6 | 5025154 | Washer, 1/4 SAE | ||
| 7 | 5025011X8 | Bolt, 5/16-18 X 1 GD5 YZ | ||
| 8 | 5025155 | Washer, 5/16 SAE | ||
| 9 | 5022308 | Body Clip, 5/16-18 X 1/2 Deep | ||
| 10 | 5046645B | Shield, Fan | ||
| 11 | 5022665 | Body Clip, 1/4-20 X 1/2in. Deep | ||
| 12 | 5025127 | Nut, 5/16-18 Hex Serrated Flange (Small) | ||
| 13 | 5047149B | Weld, Fuel Tank Mount - RH | ||
| 14 | 5047133B | Weld, Fuel Tank Mount - LH | ||
| 15 | 5025011X6 | Bolt, 5/16-18 X 3/4 GD5 | ||
| 16 | 5025170 | Washer, 5/16 Lock YZ | ||
| 17 | 5047167B | Bracket, Fuel Tank Support, RH | ||
| 18 | 5047166B | Bracket, Fuel Tank Support, LH |

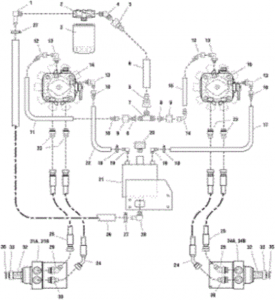

Hydraulic Group (Early Models)
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 0 | 5022662L | Motor, Wheel Side Port LH 15Ci (Includes Ref No. 32 & 33 - 48" Model, S/N: 410 & Below / 52" Model, S/N: 555 & Below) | ||
| 0 | 5022974L | Motor,Wheel,15 Ci, LH (Includes Ref No. 32 & 33 - 48" Model, S/N: 411 & Above / 52" Model, S/N: 556 & Above) | ||
| 0 | 5022662R | Motor, Wheel Side Port RH 15Ci (Includes Ref No. 32 & 33 - 48" Model, S/N: 410 & Below / 52" Model, S/N: 555 & Below) | ||
| 0 | 5022662R | Motor,Wheel,15 Ci, RH (Includes Ref No. 32 & 33 - 48" Model, S/N: 411 & Above / 52" Model, S/N: 556 & Above) | ||
| 1 | 5022723 | Low Profile 90Deg.Hyd. Adapter | ||
| 2 | 5021356 | Filter Head | ||
| 3 | 5021357X1 | Filter | ||
| 4 | 5022720 | Adapter, Hyd. | ||
| 5 | 5022719 | Adapter, Hyd. | ||
| 6 | 5050848X7P5 | Hose, Hydraulic, 7-1/2in. | ||
| 7 | 5022718 | Adapter, Union Tee | ||
| 8 | 5022716 | Adapter, Hyd | ||
| 9 | 5022717 | Adapter, Nut | ||
| 10 | 5022713 | Adapter, Hyd. | ||
| 11 | 5050860X13P75 | Hose, 3/8in. Push-Lock, 13.75in. | ||
| 12 | 5022714 | Adapter, Hyd. | ||
| 13 | 5022712 | Adapter, Hyd. | ||
| 14 | 5022715 | Adapter, Hyd. | ||
| 15 | 5050860X6P75 | Hose, 3/8in. Push-Lock, 6.75in. | ||
| 16 | 5022571 | Pump, Hydraulic W/Fan | ||
| 16 | 5100161X1 | 7in. Fan Hub Assembly, Hydrogear #70811 | ||
| 17 | 5050860X29 | Hose, 3/8in. Push-Lock, 29.00in. | ||
| 18 | 5021392 | Clamp, #6 Hose, Stainless | ||
| 19 | 5022708 | 1/4 Npt - 3/8 Beaded Hose Barb | ||
| 20 | 5022705 | Breather, Filter | ||
| 21 | 5047108B | R/B - 5048624 | ||
| 22 | 5050860X20 | Hose, 3/8in. Push-Lock, 20.00in. | ||
| 23 | 5022633 | Adapter, Hyd. | ||
| 24 | 5022710 | Hose Assembly (25.5in.) | ||
| 25 | 5102094 | Hydraulic Hose Assembly, 21in. | ||
| 26 | 5050848X16P5 | Hose, 5/8in. Push-On, 16.500in. | ||
| 27 | 5021164 | Clamp, #10 Hose, Stainless | ||
| 28 | 5022707 | Fitting, 1/2NPT-5/8in. Hose, 90D | ||
| 29 | 5022709 | Fitting, #8 Jic - #10 O-Ring, 45 Deg. | ||
| 30 | 5022634 | Adapter, Hyd. | ||
| 32 | 5022042X2 | Key, Woodruff | ||
| 33 | 5022042X3 | Nut, Castle 1-20 | ||
| 33 | 5025203X16 | Price Available Upon Request |

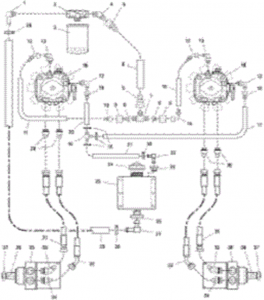

Hydraulic Group (Later Models)
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5021233 | Fitting, 1/2NPT-5/8in. Hose, 90D | ||
| 2 | 5021356 | Filter Head | ||
| 3 | 5021357X1 | Filter | ||
| 4 | 5022720 | Adapter, Hyd. | ||
| 5 | 5022719 | Adapter, Hyd. | ||
| 6 | 5050848X7P5 | Hose, Hydraulic, 7-1/2in. | ||
| 7 | 5022718 | Adapter, Union Tee | ||
| 8 | 5022716 | Adapter, Hyd | ||
| 9 | 5022717 | Adapter, Nut | ||
| 10 | 5022713 | Adapter, Hyd. | ||
| 11 | 5050860X13P75 | Hose, 3/8in. Push-Lock, 13.75in. | ||
| 12 | 5022714 | Adapter, Hyd. | ||
| 13 | 5022712 | Adapter, Hyd. | ||
| 14 | 5022715 | Adapter, Hyd. | ||
| 15 | 5050860X6P75 | Hose, 3/8in. Push-Lock, 6.75in. | ||
| 16 | 5022571 | Pump, Hydraulic W/Fan | ||
| 16 | 5100161X1 | 7in. Fan Hub Assembly, Hydrogear #70811 | ||
| 17 | 5050860X16P5 | Hose, 3/8 Push Lock,16.50in. | ||
| 18 | 5021392 | Clamp, #6 Hose, Stainless | ||
| 19 | 5022920 | Fitting, Tee, 1/2 Hose | ||
| 20 | 5050860X6 | Hose, 3/8in. Push-Lock, 6.00in. | ||
| 21 | 5050860X17P5 | Hose, 3/8in. Push-Lock, 17.50 | ||
| 22 | 5023118 | Fitting, 90 Deg, 3/8 | ||
| 23 | 5600050 | Kit, Bushing Fuel | ||
| 24 | 5023191 | Cap, Hydraulic Reservoir | ||
| 25 | 5061712 | Tank, Hydraulic, Assembly (Includes Ref. No. 22, 23, 26 & 27) | ||
| 26 | 5023121 | Grommet | ||
| 27 | 5023119 | Fitting, 90 Deg, 5/8 | ||
| 28 | 5021164 | Clamp, #10 Hose, Stainless | ||
| 29 | 5050848X18 | Hose, 5/8 Push-On, 18.00in. | ||
| 30 | 5022633 | Adapter, Hyd. | ||
| 31 | 5102094 | Hydraulic Hose Assembly, 21in. | ||
| 32 | 5022710 | Hose Assembly (25.5in.) | ||
| 33 | 5022709 | Fitting, #8 Jic - #10 O-Ring, 45 Deg. | ||
| 34 | 5022634 | Adapter, Hyd. | ||
| 35 | 5022974L | Motor,Wheel,15 Ci, LH (Includes Ref No. 36 & 37) | ||
| 36 | 5022042X2 | Key, Woodruff | ||
| 37 | 5022042X3 | Nut, Castle 1-20 | ||
| 38 | 5022974R | Motor,Wheel,15 Ci, RH (Includes Ref No. 36 & 37) |

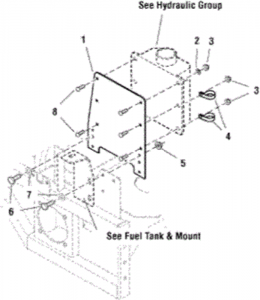

Hydraulic Tank Mount Group
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5048351B | Plate, Hydraulic Tank Mount - Red | ||
| 2 | 5025154 | Washer, 1/4 SAE | ||
| 3 | 5025095 | Nut, 1/4-20 Hex Nylon Lock | ||
| 4 | 5021500 | Clamp, Vinyl Insulated | ||
| 5 | 5025127 | Nut, 5/16-18 Hex Serrated Flange (Small) | ||
| 6 | 5025011X8 | Bolt, 5/16-18 X 1 GD5 YZ | ||
| 7 | 5025155 | Washer, 5/16 SAE | ||
| 8 | 5025144X6 | Bolt, 1/4-20 X 3/4in., Carriage |

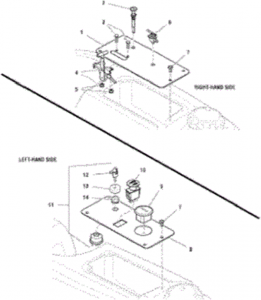

Instrument & Control Panel Group (Early Models)
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5047140B | Panel, Control-RH | ||
| 2 | 5047143 | Cable, Choke Control, 39.5in. | ||
| 3 | 5025010X6 | Bolt, 1/4-20 X 3/4 GD5 YZ | ||
| 4 | 5020811 | Cable, Throttle Control, 38in. | ||
| 5 | 5025126 | Nut, 1/4-20 Hex Serr. Flange | ||
| 6 | 5022030 | Valve, Fuel, On-Off-On Shutoff | ||
| 7 | 5025299X4 | Screw, 1/4-20 X 1/2 Allen BH | ||
| 8 | 5046492B | Panel, Control-LH | ||
| 9 | 5020060 | Hour Meter | ||
| 10 | 5022180 | Switch, Blade Engagement | ||
| 11 | 5020927 | Switch, Ignition, 6 Post (Includes Ref No. 12 - 14) | ||
| 12 | 5022789 | Key, Ignition, Molded Set | ||
| 13 | 5022790 | Cover, Plastic Snap On | ||
| 14 | 5022791 | Nut, Plastic |

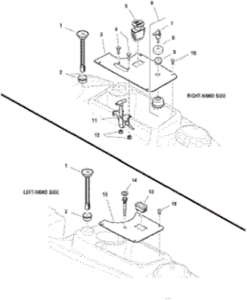

Instrument & Control Panel Group (Later Models)
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5022917 | Gauge, Fuel, 12in. | ||
| 2 | 5022917X1 | Grommet, Fuel Gauge | ||
| 3 | 5049109A | Panel, Control, RH - Black | ||
| 4 | 5025010X6 | Bolt, 1/4-20 X 3/4 GD5 YZ | ||
| 5 | 5022180 | Switch, Blade Engagement | ||
| 6 | 5020927 | Switch, Ignition, 6 Post (Includes Ref No. 7 - 9) | ||
| 7 | 5022789 | Key, Ignition, Molded Set | ||
| 8 | 5022790 | Cover, Plastic Snap On | ||
| 9 | 5022791 | Nut, Plastic | ||
| 10 | 5025299X4 | Screw, 1/4-20 X 1/2 Allen BH | ||
| 11 | 5020811 | Cable, Throttle Control, 38in. | ||
| 12 | 5025126 | Nut, 1/4-20 Hex Serr. Flange | ||
| 13 | 5102417 | Hour Meter | ||
| 14 | 5023239 | Cable, Choke Control, 39.5in. | ||
| 15 | 5049108A | Panel, Control, LH |

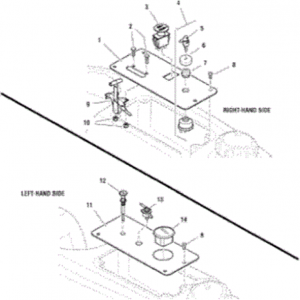

Instrument & Control Panel Group (Middle Models)
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5047858B | Panel, Control-RH | ||
| 2 | 5025010X6 | Bolt, 1/4-20 X 3/4 GD5 YZ | ||
| 3 | 5022180 | Switch, Blade Engagement | ||
| 4 | 5020927 | Switch, Ignition, 6 Post (Includes Ref No. 5 - 7) | ||
| 5 | 5022789 | Key, Ignition, Molded Set | ||
| 6 | 5022790 | Cover, Plastic Snap On | ||
| 7 | 5022791 | Nut, Plastic | ||
| 8 | 5025299X4 | Screw, 1/4-20 X 1/2 Allen BH | ||
| 9 | 5020811 | Cable, Throttle Control, 38in. | ||
| 10 | 5025126 | Nut, 1/4-20 Hex Serr. Flange | ||
| 11 | 5047860B | Panel, Control-LH | ||
| 12 | 5047779 | Cable, Choke Control, 51 (Z) | ||
| 13 | 5022030 | Valve, Fuel, On-Off-On Shutoff | ||
| 14 | 5020060 | Hour Meter |

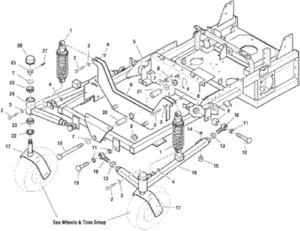

Main Frame Group
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5022842 | Coil-Over Shock Assembly | ||
| 2 | 5025013X16 | Bolt, 3/8-16 X 2 GD5 YZ | ||
| 3 | 5025156 | Washer, 3/8 SAE | ||
| 4 | 5025096 | Nut, 3/8-16 Hex Nylon Lock | ||
| 5 | 5047449B | Weld, IS1000Z Main Frame | ||
| 6 | 5047457B | Upper Shock Mount Weldment | ||
| 7 | 5025160 | Washer, 3/4 SAE | ||
| 8 | 5025284 | Nut, 3/4-16 Hex Nylon Lock | ||
| 9 | 5046093 | Spacer, .75 X 1.50 X 1.00 | ||
| 10 | 5022039 | Ball Joint, 3/4-16, Male | ||
| 11 | 5047461 | Spacer, .76 X 1.00 X .25 | ||
| 12 | 5025265X32 | Bolt, 3/4-16 X 4in. YZ GD5 | ||
| 13 | 5025093 | Nut, 3/4-16 Hex Jam | ||
| 14 | 5025095 | Nut, 1/4-20 Hex Nylon Lock | ||
| 15 | 5022673 | Bumper, Rubber 1/4-20 | ||
| 16 | 5047445 | Assembly, Front A-Arm, LH | ||
| 17 | 5600097 | Kit, Yoke - Replacement Of 5047049B | ||
| 18 | 5025265X24 | Bolt, 3/4-16 X 3in. YZ GD5 | ||
| 19 | 5025265X48 | Bolt, 3/4-16 X 6in. YZ GD8 | ||
| 20 | 5047489 | Spacer, .75 X 1.00 X 2.38 | ||
| 21 | 5022852 | Pivot Bearing, 1.00in. X 1.125in. OD X 1.50in. | ||
| 22 | 5021072 | Seal, Grease | ||
| 23 | 5020884 | Bearing, Tapered Roller, 1in. | ||
| 24 | 5047452 | Assembly, Front A-Arm, RH | ||
| 25 | 5025104 | Nut, 3/4-16 Hex Slotted | ||
| 26 | 5021073 | Cap, Dust | ||
| 27 | 5025203X10 | Pin, Cotter, 1/8in. X 1-1/4 |

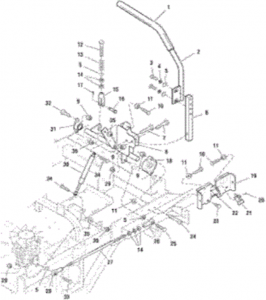

Motion Control Group
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5022068 | Grip, Foam, 3/4 ID, 16 Long | ||
| 2 | 5047056B | Weld, Handle Motion Control-RH | ||
| 2 | 5047055B | Weld, Handle Motion Control-LH (Not Shown) | ||
| 3 | 5025011X8 | Bolt, 5/16-18 X 1 GD5 YZ | ||
| 4 | 5025170 | Washer, 5/16 Lock YZ | ||
| 5 | 5025155 | Washer, 5/16 SAE | ||
| 6 | 5047004 | Mount, Control Arm | ||
| 7 | 5025013X14 | Bolt, 3/8-16 X 1-3/4 GD5 | ||
| 8 | 5047045B | Weld, Motion Control Shaft, RH | ||
| 8 | 5047044B | Weld, Motion Control Shaft, LH (Not Shown) | ||
| 9 | 5025096 | Nut, 3/8-16 Hex Nylon Lock | ||
| 10 | 5025055X14 | Bolt, 5/16-18 X 1-3/4in. GD5 TFL | ||
| 11 | 5025127 | Nut, 5/16-18 Hex Serrated Flange (Small) | ||
| 12 | 5047137 | Bolt, 5/16-24 X 4-1/4in. GD5 YZ | ||
| 13 | 5022645 | Spring, Reverse Return | ||
| 14 | 5025033 | Nut, 5/16-24 Hex | ||
| 15 | 5023323 | Clevis, 5/16-24, Steel | ||
| 16 | 5025213X8 | Pin, Clevis, 5/16 X 1 YZ | ||
| 17 | 5025201X6 | Pin, Cotter, 3/32in. X 3/4 | ||
| 18 | 5021499 | Bearing, Flange | ||
| 19 | 5047081B | Plate, Neutral Weld.-RH | ||
| 19 | 5047080B | Plate, Neutral Weld.-LH (Not Shown) | ||
| 20 | 5025179X4 | Screw, #10-24 X 1/2 Round Phillips | ||
| 21 | Switch (See Electrical Group) | |||
| 22 | 5025029 | Nut, #10-24 Hex | ||
| 24 | 5025327 | Bolt, 3/8-16 X 1-1/4 SHCS | ||
| 25 | 5025011X10 | Bolt, 5/16-18 X 1-1/4 GD5 YZ | ||
| 26 | 5021146 | Ball Joint, 5/16-24, Female | ||
| 27 | 5047102 | Rod, Hydro Control | ||
| 28 | 5022628 | Ball Joint, 5/16-24, LH Female | ||
| 29 | 5025057 | Nut, 5/16-18 Hex Nylon Lock | ||
| 30 | 5100728 | Dampener, Control | ||
| 31 | 5021098 | Bearing, Bronze Flange, 3/4 | ||
| 32 | 5025013X8 | Bolt, 3/8-16 X 1 GD5 YZ | ||
| 33 | 5025011X9 | Bolt, 5/16-18 X 1-1/8 GD5 | ||
| 34 | 5025335 | Bolt, M8-1.25 X 35mm, GD8.8 | ||
| 35 | 5025355 | Nut, M8-1.25 Serr. Flange, CZ | ||
| 36 | 5025354 | Nut, M8-1.25 Nylon Lock, CZ |

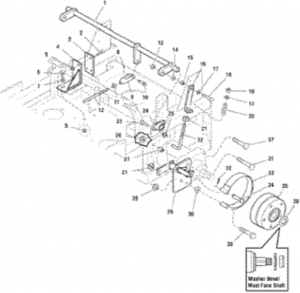

Parking Brake Group – Lower
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5047128B | Weld, Rear Brake Shaft | ||
| 2 | 5025303 | Screw, 5/16-18 X 1 Flat HD SC | ||
| 3 | 5045990 | Deck Friction Reducer Plate | ||
| 4 | 5047153B | Weld, Brake Shaft Support | ||
| 5 | 5025127 | Nut, 5/16-18 Hex Serrated Flange (Small) | ||
| 6 | 5025011X8 | Bolt, 5/16-18 X 1 GD5 YZ | ||
| 7 | 5025155 | Washer, 5/16 SAE | ||
| 8 | 5025201X6 | Pin, Cotter, 3/32in. X 3/4 | ||
| 9 | 5021171 | Clevis 3/8-24, Plastic | ||
| 10 | 5025214X8 | Pin, Clevis, 3/8 X 1 | ||
| 11 | 5025035 | Nut, 3/8-24 Hex | ||
| 12 | 5047119 | Rod, Brake Connecting | ||
| 13 | 5025100 | Nut, 3/8-16 Hex Side Lock | ||
| 14 | 5025034 | Nut, 3/8-16 Hex | ||
| 15 | 5041930 | Spacer, .38 X .50 X .27 | ||
| 16 | 5047084B | Link, Brake Lock | ||
| 17 | 5025156 | Washer, 3/8 SAE | ||
| 18 | 5025013X12 | Bolt, 3/8-16 X 1-1/2 GD5 YZ | ||
| 19 | 5025046 | Nut, 3/8-16, Hex Top Lock | ||
| 20 | 5022361 | Spring-Comp, .428ID X 2.50LG X .155WR | ||
| 21 | 5010546 | Collar, 3/8in. Set | ||
| 22 | 5047091 | Rod, Brake Adjustment | ||
| 23 | 5025013X6 | Bolt, 3/8-16 X 3/4 GD5 YZ | ||
| 24 | 5021098 | Bearing, Bronze Flange, 3/4 | ||
| 25 | 5025128 | Nut, 3/8-16 Hex Serrated Flange | ||
| 26 | 5025387 | Nut, 1/2-20 Hex Top Lock Flange | ||
| 27 | 5047027 | Spacer, .51 X .75 X .56 | ||
| 28 | 5025056 | Nut, 1/2-13 Hex Nylon Lock | ||
| 29 | 5047089B | Weld, Brake Band Shaft, LH | ||
| 29 | 5047090B | Weld, Brake Band Shaft, RH (Not Shown) | ||
| 30 | 5025017X24 | Bolt, 1/2-13 X 3 GD5 | ||
| 31 | 5025018X28 | Bolt, 1/2-20 X 3-1/2in. GD5 YZ | ||
| 32 | 5025202X10 | Cotter Pin, 3/16in. X 1-1/4in. | ||
| 33 | 5022607 | Band, 6in. Brake | ||
| 34 | 5025328X16 | Pin, Clevis, 1/2 X 2 YZP | ||
| 35 | 5047052 | Brake Hub Casting | ||
| 36 | 5025038 | Nut, 1/2-13 Hex | ||
| 37 | 5025018X24 | Bolt, 1/2-20 X 3in. GD5 YZ | ||
| 38 | 5023249 | Washer, 1.06X2.01X.115 CNT BR |

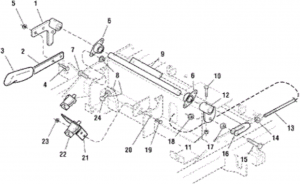

Parking Brake Group – Upper
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5045616B | Weld, Pivot, Handle Mount | ||
| 2 | 5045619B | Handle, Brake Lever | ||
| 3 | 1722302 | Grip-Black Vinyl For .30 X 1.00 Handle | ||
| 4 | 5025011X8 | Bolt, 5/16-18 X 1 GD5 YZ | ||
| 5 | 5025127 | Nut, 5/16-18 Hex Serrated Flange (Small) | ||
| 6 | 5021098 | Bearing, Bronze Flange, 3/4 | ||
| 7 | 5025013X6 | Bolt, 3/8-16 X 3/4 GD5 YZ | ||
| 8 | 5025128 | Nut, 3/8-16 Hex Serrated Flange | ||
| 9 | 5047083B | Shaft, Brake Lever Weldment | ||
| 10 | 5025010X14 | Bolt, 1/4-20 X 1-3/4in. GD5 YZ | ||
| 11 | 5025095 | Nut, 1/4-20 Hex Nylon Lock | ||
| 12 | 5045618B | Pivot, Linkage Mount Weldment | ||
| 13 | 5047119 | Rod, Brake Connecting | ||
| 14 | 5025035 | Nut, 3/8-24 Hex | ||
| 15 | 5025013X16 | Bolt, 3/8-16 X 2 GD5 YZ | ||
| 16 | 5021171 | Clevis 3/8-24, Plastic | ||
| 17 | 5025034 | Nut, 3/8-16 Hex | ||
| 18 | 5025096 | Nut, 3/8-16 Hex Nylon Lock | ||
| 19 | 5025010X6 | Bolt, 1/4-20 X 3/4 GD5 YZ | ||
| 20 | 5025154 | Washer, 1/4 SAE | ||
| 21 | 5045621B | Bracket, Switch Mount | ||
| 22 | Switch (See Electrical Group) | |||
| 23 | 5025126 | Nut, 1/4-20 Hex Serr. Flange | ||
| 24 | 5025058X14 | Bolt, 3/8-16 X 1-3/4in. GD5 TFL |

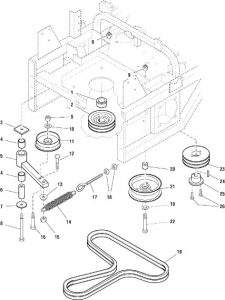

Pump Drive Group
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5047033 | Spacer, 1.13 X 1.75 X 1.03 | ||
| 2 | 5047075 | Pulley, Crankshaft (Double A) | ||
| 3 | 5045090 | Spacer, Idler Pivot | ||
| 4 | 5022157 | Bushing, Brass, 1.25X1X1.25 | ||
| 5 | 5046430B | Weld, Arm, Pump Drive Idler - Red | ||
| 6 | 5102004 | Spacer, .39 X 1.00 X 2.55, SS | ||
| 7 | 5025305 | Washer, .41 X 1.75 X .14 | ||
| 8 | 5025013X32 | Bolt, 3/8-16 X 4 GD5 YZ | ||
| 9 | 5025096 | Nut, 3/8-16 Hex Nylon Lock | ||
| 10 | 5025156 | Washer, 3/8 SAE | ||
| 11 | 5022621 | Pulley, Idler, Single Flange | ||
| 12 | 5025013X14 | Bolt, 3/8-16 X 1-3/4 GD5 | ||
| 13 | 5025128 | Nut, 3/8-16 Hex Serrated Flange | ||
| 14 | 5022847 | Spring, Extension, Swivel End | ||
| 15 | 5025100 | Nut, 3/8-16 Hex Side Lock | ||
| 16 | 5025013X18 | Bolt, 3/8-16 X 2-1/4 GD5 YZ | ||
| 17 | 5025321 | Screw Hook, 3/8-16 X 4-1/4 | ||
| 18 | 5025034 | Nut, 3/8-16 Hex | ||
| 19 | 5100555 | Belt,#41-1299, Banded -EL 64.76 (Pair) | ||
| 20 | 5046446 | Spacer, .39 X 1.00 X .80 | ||
| 21 | 5022620 | Pulley, Idler, 5 | ||
| 22 | 5025013X22 | Bolt, 3/8-16 X 2-3/4in. GD5 YZ | ||
| 23 | 5022586 | Pulley, Pump Drive | ||
| 24 | 5023254 | Key, 5mm SQ. W/ Radius | ||
| 25 | 5022587 | Bushing, Tapered Hub (Nla) | ||
| 26 | 5025010X8 | Bolt, 1/4-20 X 1in., GD5 |

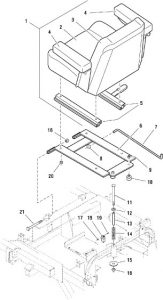

Seat & Mount Group
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5022031 | Seat, Gray, No Logo, Cmpt | ||
| 1 | 5022031X2 | Seat Bottom (EVC 907) | ||
| 1 | 5022031X4 | Seat Back W/ Logo (EVC 907) | ||
| 1 | 5022185 | Arm Rest, Black Molded | ||
| 1 | 5020930X3 | Seat Adjusters (Set) | ||
| 2 | 5047744B | Weld, Seat Mount | ||
| 3 | 5046470 | Rod, Seat Stop | ||
| 4 | 5020047 | Collar, 5/16in. Set | ||
| 5 | 5025095 | Nut, 1/4-20 Hex Nylon Lock | ||
| 6 | 5022673 | Bumper, Rubber 1/4-20 | ||
| 7 | 5025013X48 | Bolt, 3/8-16 X 6 GD5 YZ | ||
| 8 | 5025156 | Washer, 3/8 SAE | ||
| 9 | 5046586 | Spacer, .38 X .50 X 5.06 | ||
| 10 | 5022798 | Spring, Comp, .835 X.105 X4.26 | ||
| 11 | 5025326 | Washer, .39 X 2.00 X X .14 | ||
| 12 | 5025096 | Nut, 3/8-16 Hex Nylon Lock | ||
| 13 | 5025029 | Nut, #10-24 Hex | ||
| 14 | Switch (See Electrical Group) | |||
| 15 | 5025270 | Screw, #10-24 X 1in. Rs | ||
| 16 | 5025057 | Nut, 5/16-18 Hex Nylon Lock | ||
| 17 | 5025013X32 | Bolt, 3/8-16 X 4 GD5 YZ | ||
| 18 | 5100652 | N/A Spring, Milsco, Black (Not Shown.) |

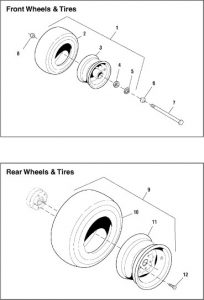

Tire & Wheel Group
| ID | Parts Number | Parts Description | Notes | Purchase |
|---|---|---|---|---|
| 1 | 5022631S | Tire, Caster, 13 X 5.00-6 (Includes Ref No. 2 - 5 & 13) | ||
| 2 | 5022029X1 | Tire Only | ||
| 3 | 5022631SX1 | Wheel Assembly, 13 X 5 X 6, Silver (Includes Ref No. 4 & 5) | ||
| 4 | 5022631SX2 | Bearing, Tapered Cone (2 Per Tire) | ||
| 5 | 5022631SX3 | Seal, Grease (2 Per Tire) | ||
| 6 | 5047103 | Adapter, Caster Axle (2 Per Tire) | ||
| 7 | 5025017X60 | Bolt, 1/2-13 X 7-1/2in. GD5 YZ | ||
| 8 | 5025056 | Nut, 1/2-13 Hex Nylon Lock | ||
| 9 | 5022646S | Tire, 23 X 9.50 Assembly. (Includes Ref No. 10 & 11) | ||
| 10 | 5022646SX1 | Tire, 23 X 9.50 - 12 | ||
| 11 | 5022646SX2 | Wheel, 12 X 7.5 (Silver) | ||
| 12 | 5022215 | Bolt, Wheel Lug, 1/2in. X 1-5/8 | ||
| 13 | 5022631SX4 | Race, Bearing (Not Shown) |
